Sushi Conveyor
Description
Customers can choose from the options available below:

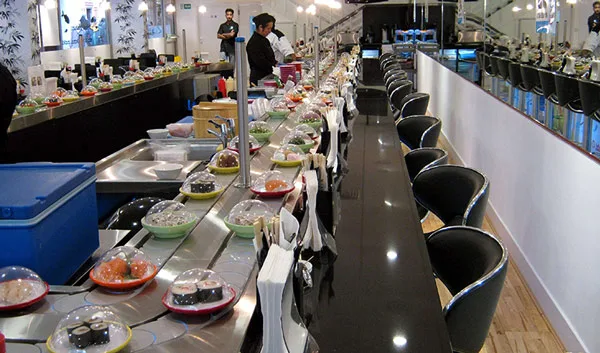

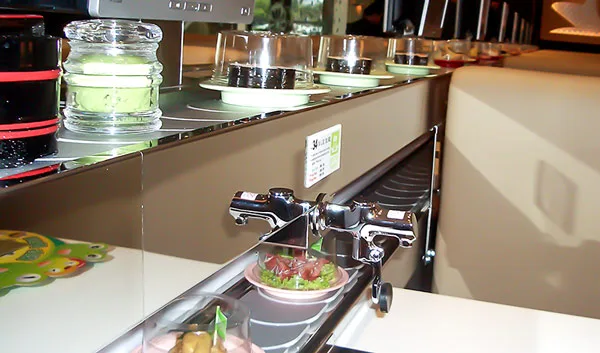

- Restaurant – Sushi, Hot Pot, Dim Sum or Shabu Shabu
- Business – Window Showcase Display, Art Exhibition or Show Room Display
- Industrial – Parts Assembly Lines
Modular design allows flexible layout and assembly. Frames can be coated in customizable colors and textures.
- Aluminum
- Stainless steel
- Customized colors & texture
- Modular design
We have delivered to America, South-East Asia, Korea, Europe and other regions around the world.
> 25
Countries Delivered 25 Years
25
Years Experience
2500
Projects Completed
Standard Modules
Single Track
Double Track
Combine Track
45 Deg Bend
90 Deg Drive
90 Deg Bend
Straight Section
Straight Section
Tee Bend
X Bend
180 Deg Drive
180 Deg Bend
90 Deg Bend
Tee Bend
R Bend Right
R Bend Left
Curve Layout
Double Deck Layout

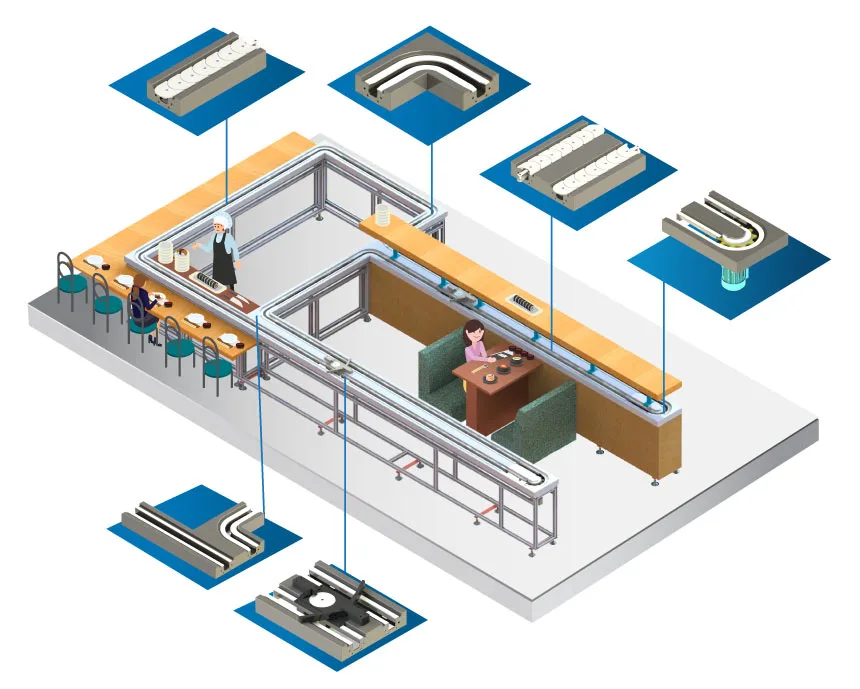

Typical Layout
Types Of Conveyor Profiles
E Series- EM
E Series- EL
S Series- SM Slim
S Series- SM Large
S Series- SL Slim
S Series-SL Medium
S Series- SL Large
| Type | Medium | Large |
|---|---|---|
| Profile Width | 170 mm | 376 mm |
| Profile Height | 65 mm | |
| Chain Width | 85 mm | |
| Material | Aluminum | |
| Finishing | Natural Anodized or Powder Coat | |
| Type | Medium | Large |
|---|---|---|
| Profile Width | 170 mm | 376 mm |
| Profile Height | 65 mm | |
| Chain Width | 85 mm | |
| Material | Aluminum | |
| Finishing | Natural Anodized, Powder Coat | |
| Type | Medium | Large |
|---|---|---|
| Profile Width | 113 mm | 319 mm |
| Profile Height | 74 mm | |
| Chain Width | 85 mm | |
| Material | Stainless Steel | |
| Finishing | Hairline, Mirror or Powder Coat | |
| Type | Medium | Large |
|---|---|---|
| Profile Width | 170 mm | 376 mm |
| Profile Height | 74 mm | |
| Chain Width | 85 mm | |
| Material | Stainless Steel | |
| Finishing | Hairline, Mirror or Powder Coat | |
| Type | Medium | Large |
|---|---|---|
| Profile Width | 130 mm | 377 mm |
| Profile Height | 74 mm | |
| Chain Width | 114 mm | |
| Material | Stainless Steel | |
| Finishing | Hairline, Mirror or Powder Coat | |

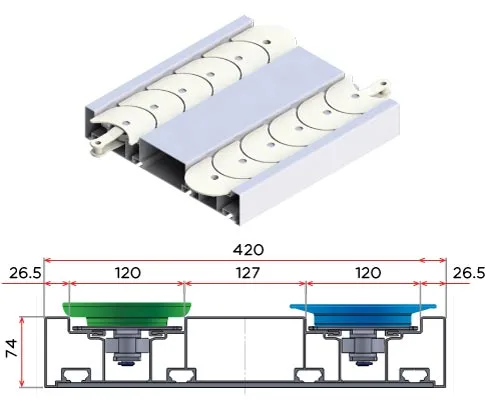

| Type | Medium | Large |
|---|---|---|
| Profile Width | 173 mm | 420 mm |
| Profile Height | 74 mm | |
| Chain Width | 114 mm | |
| Material | Stainless Steel | |
| Finishing | Hairline, Mirror or Powder Coat | |

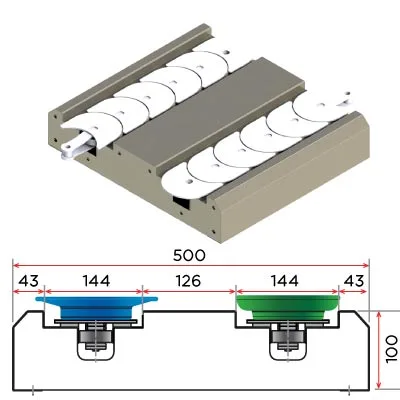

| Type | Medium | Large |
|---|---|---|
| Profile Width | 230 mm | 500 mm |
| Profile Height | 100 mm | |
| Chain Width | 114 mm | |
| Material | Stainless Steel | |
| Finishing | Hairline, Mirror or Powder Coat | |
